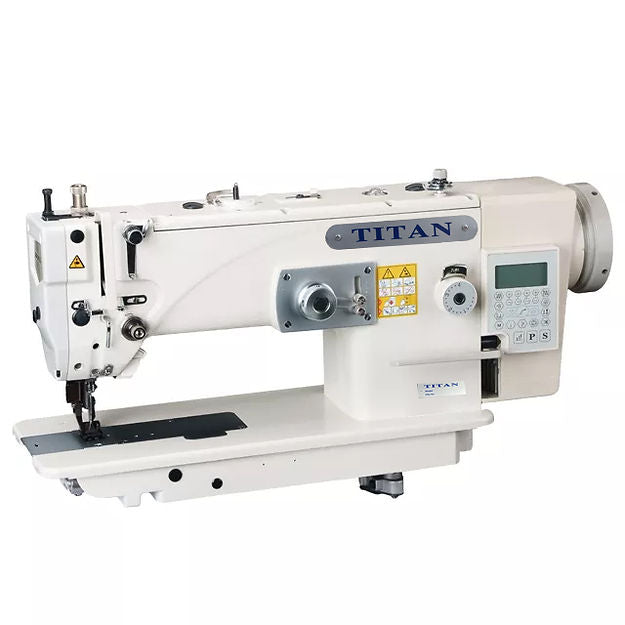

The Titan TN-2530D is a heavy-duty industrial walking foot zigzag sewing machine designed for medium to heavy materials where conventional zigzag machines struggle. Featuring a synchronized top and bottom feed system and an integrated direct drive motor, the TN-2530D delivers stable, consistent stitch formation across multiple layers — reducing slippage, puckering, and layer shifting.
Widely used in leather goods manufacturing, upholstery, canvas products, marine textiles, footwear, outdoor gear, and technical sewing operations, the TN-2530D combines zigzag versatility with the feeding power of a walking foot platform.
Key Features
- Synchronized top and bottom (walking foot) feed mechanism — superior control on thick and layered materials
- Zigzag and straight stitch capability — maximum stitch width 10mm
- Maximum stitch length: 4mm forward and reverse
- Maximum speed: 2,000 SPM
- Integrated direct drive motor — smooth, quiet, low-vibration operation
- Large capacity vertical hook with increased bobbin capacity
- High-torque performance at low speeds for precision work
- Needle: DP×17 industrial needle
- Industrial-grade build quality for continuous production use
Applications
- Leather goods manufacturing
- Upholstery & canvas products
- Marine & outdoor textiles
- Footwear production
- Technical sewing operations
- Multi-layer & heavy material sewing
What’s Included
- Titan TN-2530D sewing head
- Industrial table and stand
- Integrated direct drive motor
- LED light
- Drawer with accessories (oil, tools, manuals)
- Full technical support (phone, email, video)
Every TN-2530D is assembled, calibrated, and fully tested in Canada to ensure reliable, production-ready performance right out of the box.
Each machine is set up and tested for your application.
⚠️ Freight Sensitive — freight charges are additional. Please review our shipping policy for details.
