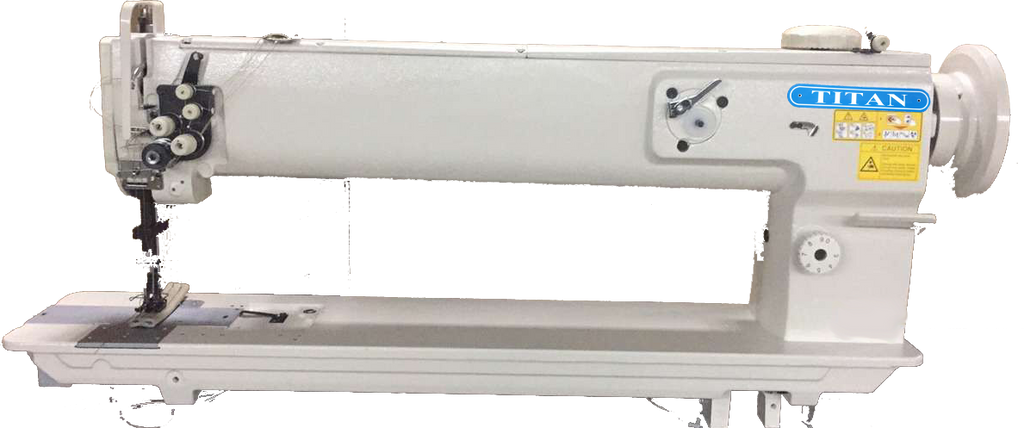

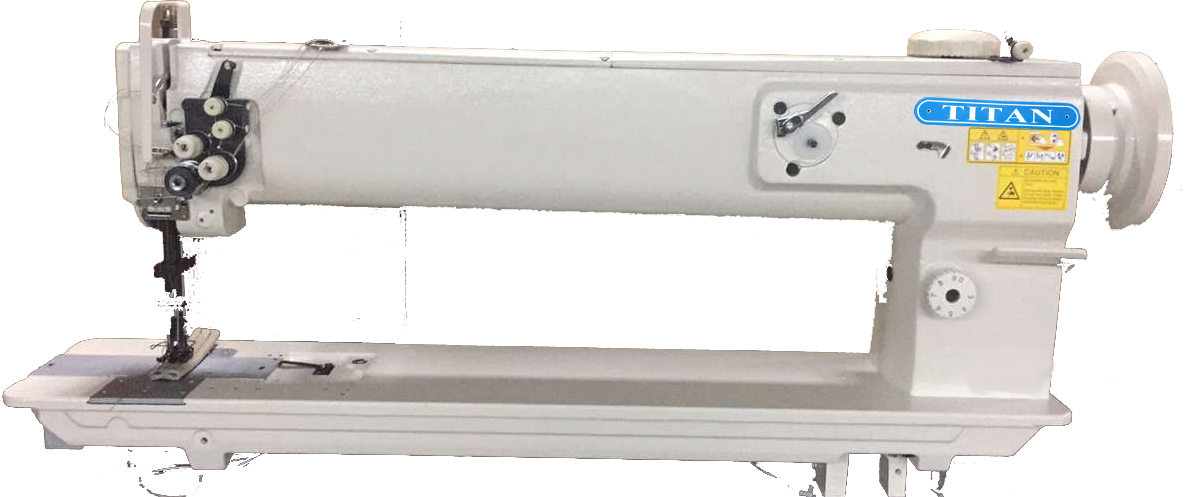

The Titan TN-1510L-25H is an extra long-arm, heavy-duty single-needle walking foot sewing machine engineered for large-scale materials, extended seam runs, and high-output industrial environments. Built on the proven 1510-class platform with a 25" extended arm and high arm clearance, this machine delivers exceptional workspace for handling oversized panels without compromising stitch precision.
Designed for upholstery, automotive interiors, marine fabrication, and industrial textile production, the TN-1510L-25H combines maximum reach with the control and versatility of a single-needle system — ideal for large-format work where maneuverability and accuracy are critical.
Key Features
25" extra long arm / high arm design — maximum workspace for oversized panels, long seam runs, and bulky assemblies
Compound walking foot feed system (rectangular feed) — consistent, even feeding across multiple layers
Maximum speed: 2,000 SPM | Maximum stitch length: 9mm forward & reverse
Presser foot lift: 16mm (air/knee), 9mm (hand)
Large capacity hook (big bobbin) — supports heavier thread, reduces bobbin changes on long runs
Adjustable walking foot climbing mechanism — smooth transitions over seams and layered sections
Air foot lift & automatic self-oiling lubrication system
Needle: 135x17 (DP×17) | Thread: TEX 40–TEX 210
Applications
Upholstery & large furniture production
Automotive & marine interiors
Tarps, tents & industrial covers
Canvas, awnings & technical textiles
Leather goods & heavy fabric assemblies
Large-format fabrication and contract sewing
What’s Included
Fully laminated plywood tabletop with rubber trim
Titan Deluxe 2.0 T-stand with locking wheels
TN-750W needle positioning servo motor
Drawer with accessories (oil, tools, manuals)
LED light
Full technical support (phone, email, video)
Every TN-1510L-25H is assembled, calibrated, and fully tested in Canada to ensure consistent, production-ready performance right out of the box.
Each machine is set up and tested for your application.
