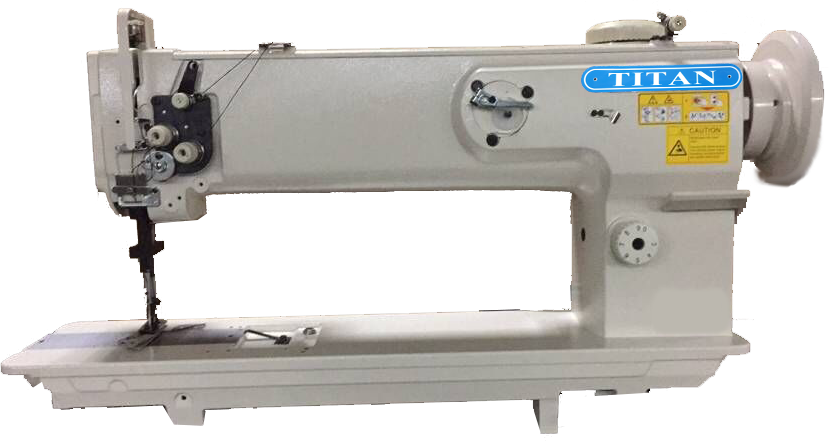

The Titan TN-1510L-18H is a heavy-duty, long-arm single-needle walking foot sewing machine engineered for handling large materials, bulky assemblies, and precision-driven industrial applications. Built on the proven 1510-class platform with an 18" extended arm and high arm clearance, this machine provides the workspace needed for oversized projects while maintaining excellent stitch accuracy and control.
Designed for upholstery, automotive interiors, marine work, and industrial textile fabrication, the TN-1510L-18H combines extended reach with the flexibility and precision of a single-needle system — ideal for detailed work on large panels where maneuverability matters.
Key Features
18" long arm / high arm design — expanded workspace for large panels, long seams, and bulky assemblies
Compound walking foot feed system (needle feed + walking foot + bottom feed) — consistent feeding across multiple layers
Maximum speed: 2,000 SPM | Maximum stitch length: 9mm forward & reverse
Presser foot lift: 16mm (air), 9mm (hand)
Large vertical axis hook (high capacity) — supports heavier thread, reduces bobbin changes on long runs
Adjustable walking foot climbing mechanism — smooth transitions over seams and layered sections
Air foot lift & automatic self-oiling lubrication system
Needle: 135x17 (DP×17) | Thread: TEX 40–TEX 210
Applications
Upholstery & furniture manufacturing
Automotive & marine interiors
Tarps, tents & covers
Canvas, awnings & industrial textiles
Leather goods & heavy fabric assemblies
Custom fabrication requiring precision control
What’s Included
Fully laminated plywood tabletop with rubber trim
Titan Deluxe 2.0 T-stand with locking wheels
TN-750W needle positioning servo motor
Drawer with accessories (oil, tools, manuals)
LED light
Full technical support (phone, email, video)
Every TN-1510L-18H is assembled, calibrated, and fully tested in Canada to ensure consistent, production-ready performance right out of the box.
Each machine is set up and tested for your application.
