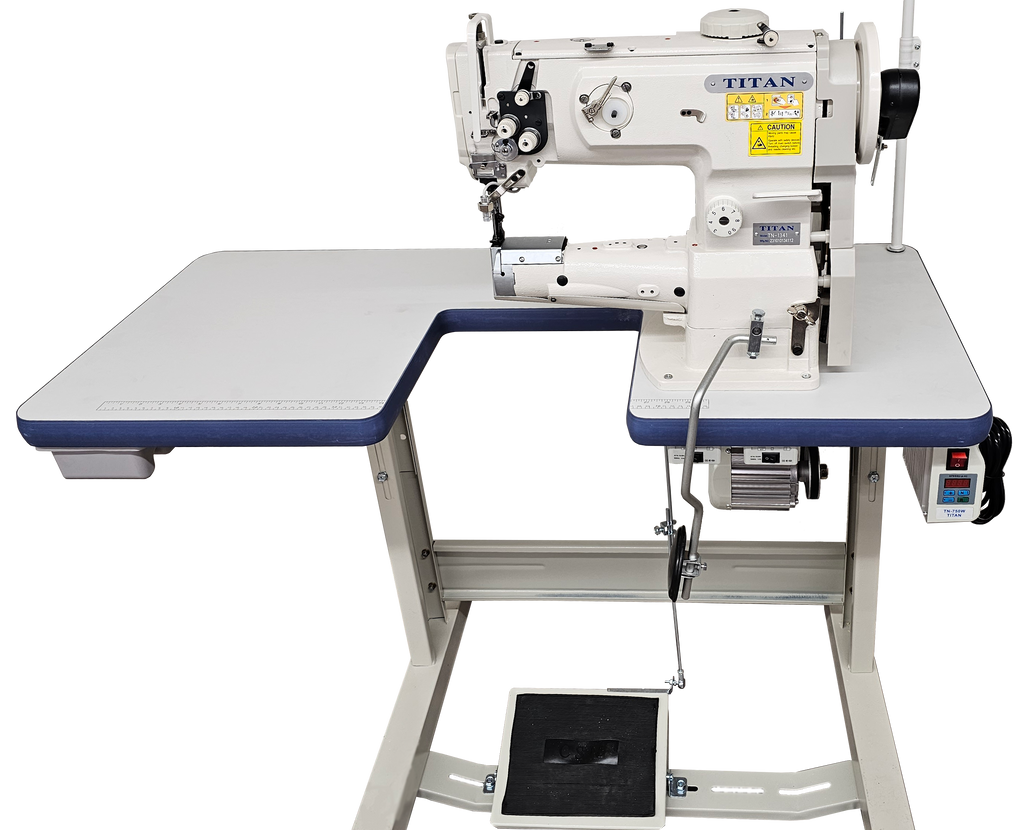

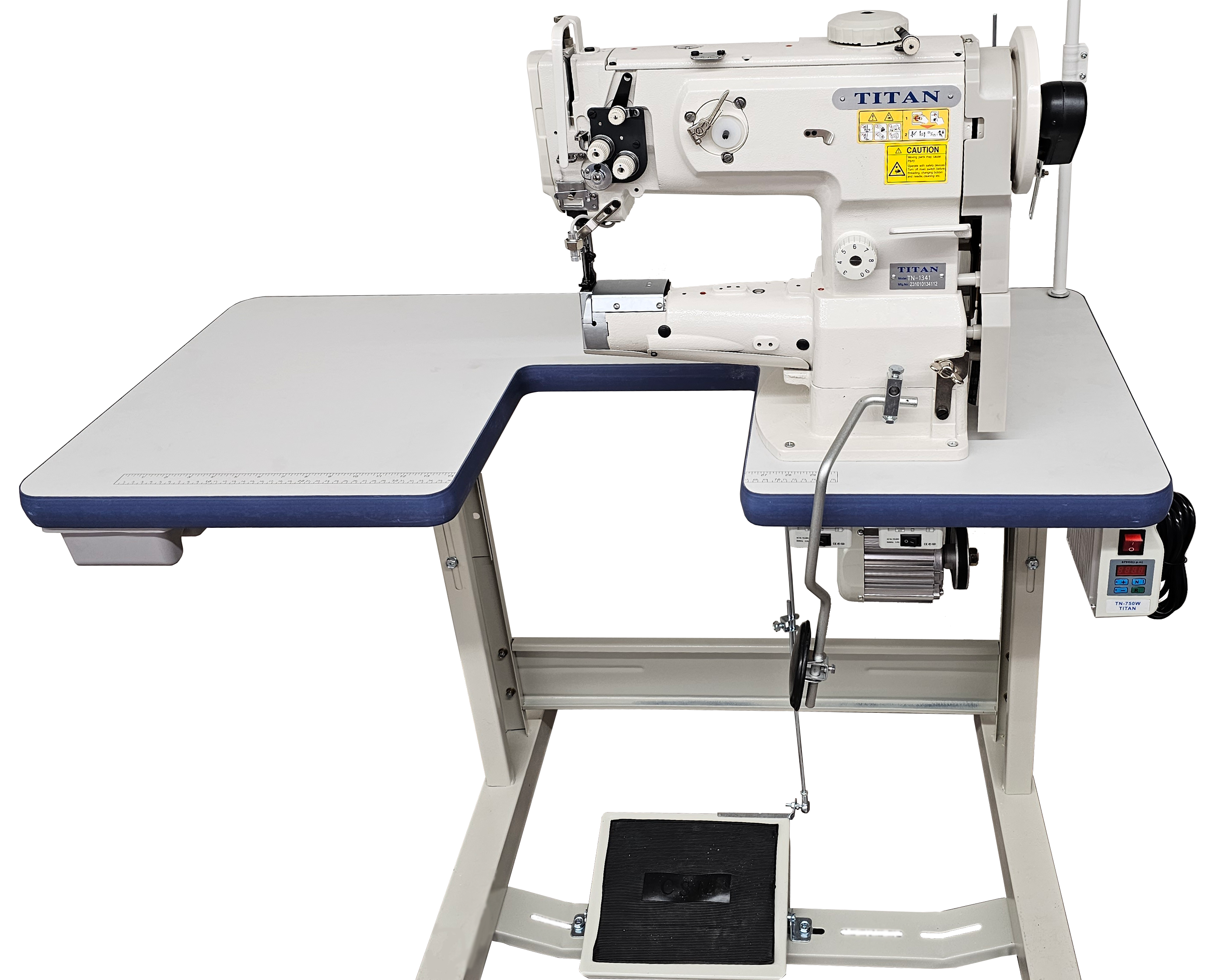

The Titan TN-1341 is a professional-grade cylinder arm walking foot sewing machine engineered for sewing medium to heavy-weight materials with precision and control. Designed for tight, hard-to-reach areas, this machine excels where flatbed machines can't perform — making it ideal for bags, belts, wallets, footwear, and cylindrical products.
Equipped with a compound triple feed system and dual tension control, the TN-1341 delivers consistent stitch quality, strong material feeding, and reliable performance in demanding production environments.
Key Features
- Cylinder arm design — narrow arm for easy sewing inside bags, tubular items, and curved assemblies
- Compound walking foot feed system (needle feed + walking foot + bottom feed) — smooth, even feeding across layered materials
- Maximum speed: 2,000 SPM | Maximum stitch length: 9mm forward & reverse
- Presser foot lift: 16mm (knee), 9mm (hand)
- Large capacity vertical axis hook — longer run times between bobbin changes
- Dual tension control — improved stitch balance with heavier threads (TEX 45–TEX 210)
- Needle bar stroke: 36mm | Needle: DP×17 | Stitch adjustment: dial control
Applications
- Leather goods (belts, wallets, bags)
- Footwear and shoe components
- Upholstery and automotive interiors
- Cases, covers & technical products
- Cylindrical and hard-to-access sewing jobs
What’s Included
- Fully laminated plywood tabletop with rubber trim
- Titan Deluxe 2.0 T-stand with locking wheels
- Drawer with accessories (oil, tools, manuals)
- LED light
- Full technical support (phone, email, video)
Every TN-1341 is assembled, calibrated, and fully tested in Canada to ensure reliable, production-ready performance right out of the box.
Each machine is set up and tested for your application.
