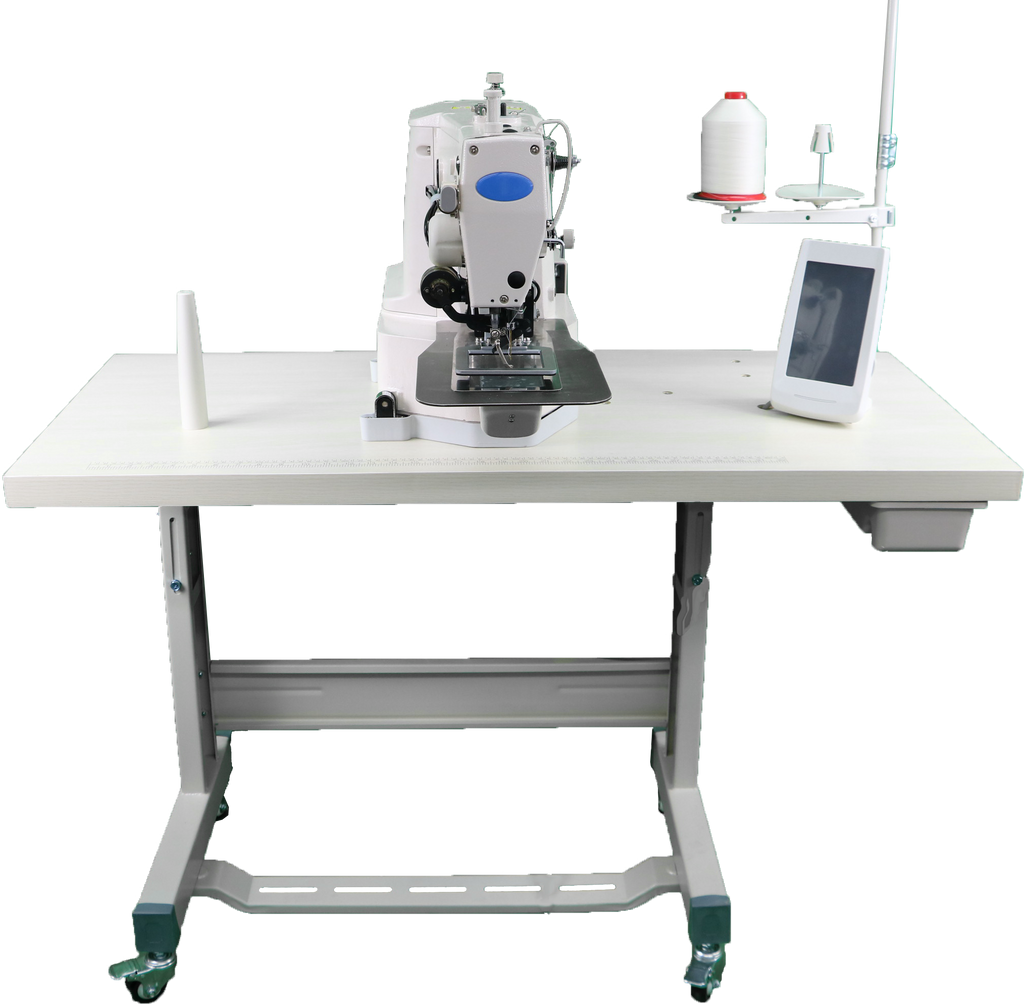

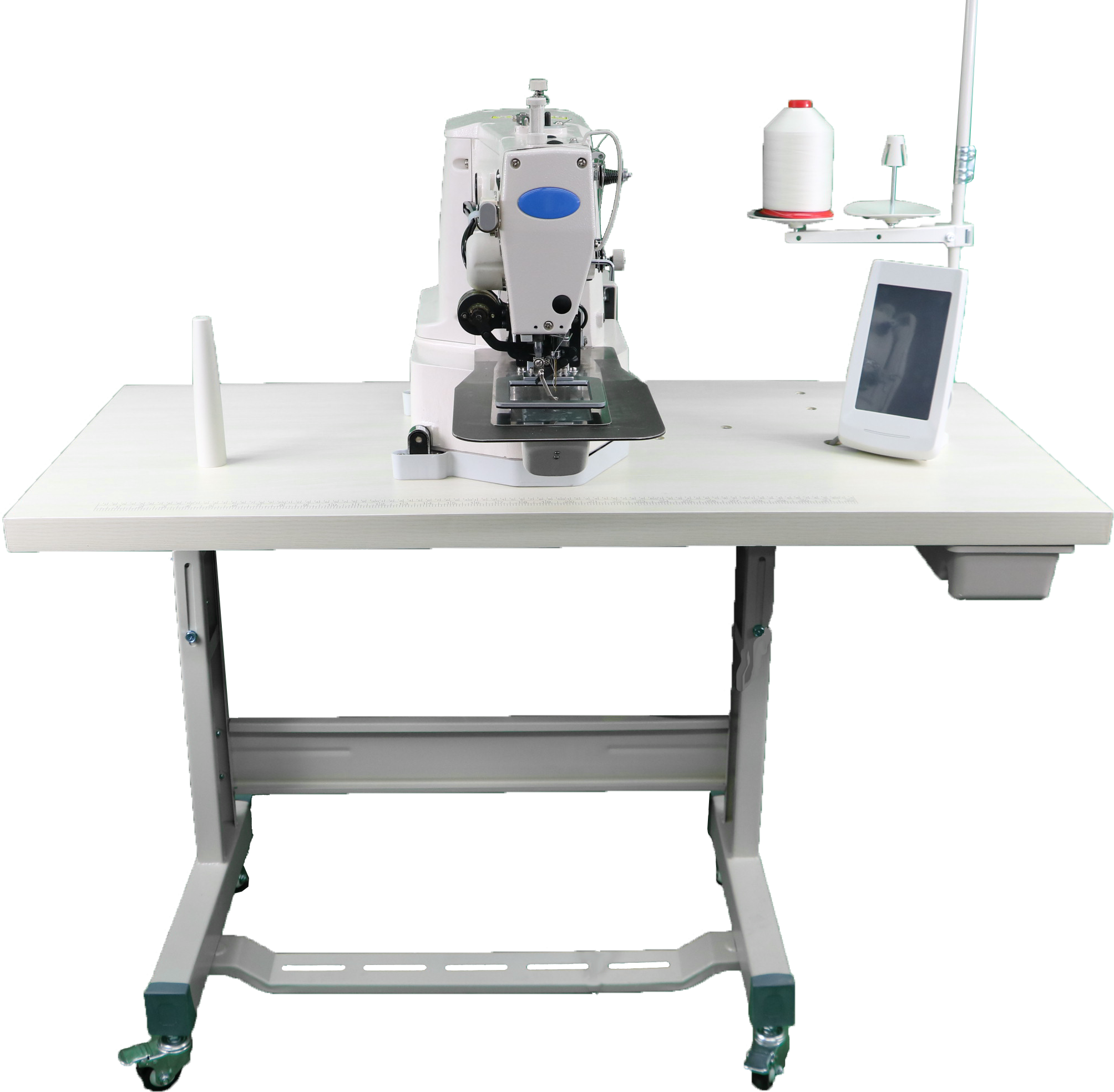

Titan TN-436 Programmable Tacker Sewing Machine

The Titan TN-436BH is a high-speed, programmable electronic pattern tacker (bar tack machine) engineered for precision reinforcement stitching and automated sewing patterns. Built on the proven TN-436 platform with a 100mm x 60mm sewing field, 0.1mm stitch accuracy, and a 7" touchscreen control panel, this machine delivers consistent, repeatable stitch quality across a wide range of materials and applications.

Designed for garment manufacturing, technical textiles, and reinforcement applications, the TN-436BH replaces manual bar tacking with fully controlled, programmable automation — ideal for high-volume production where accuracy and consistency are critical.

Key Features

• Programmable pattern sewing system — create, edit, and store custom stitch patterns via USB or onboard memory
• 100mm x 60mm sewing area — versatile field for bartacks, box patterns, and custom reinforcement designs
• Maximum speed: 3,000 SPM | Stitch length: 0.1–12.5mm | Stitch accuracy: 0.1mm
• 7" full-color touchscreen LCD control panel — easy programming, pattern management, speed control, and diagnostics
• Direct drive servo motor — quiet, low-vibration, energy-efficient operation
• Electronic presser foot control — automatic adjustment for varying material thickness
• Large shuttle hook — supports wide range of thread sizes for strong reinforcement seams
• Needle: DP×5 (#90–#140) | Needle bar stroke: 41.2mm | Feeding frame lift: 17mm | Power: 110V / 220V

Applications

• Bar tacking (belt loops, pockets, reinforcement points)
• Box stitching for straps and load-bearing seams
• Safety gear & webbing assemblies
• Bags, luggage & tactical equipment
• Apparel production & workwear
• Technical textiles & industrial sewing

What’s Included

• Fully integrated programmable sewing head
• Industrial stand and tabletop
• Direct drive servo motor system with touchscreen control panel
• Clamp set (application dependent)
• LED lighting system
• Accessories (tools, needles, manuals)
• Full technical support (phone, email, video)

Every TN-436BH is assembled, calibrated, and fully tested in Canada to ensure accurate pattern execution, consistent stitch quality, and reliable production performance from day one.

Each machine is set up and tested for your application.

⚠️ Freight Sensitive — freight charges are additional. Please review our shipping policy for details.
