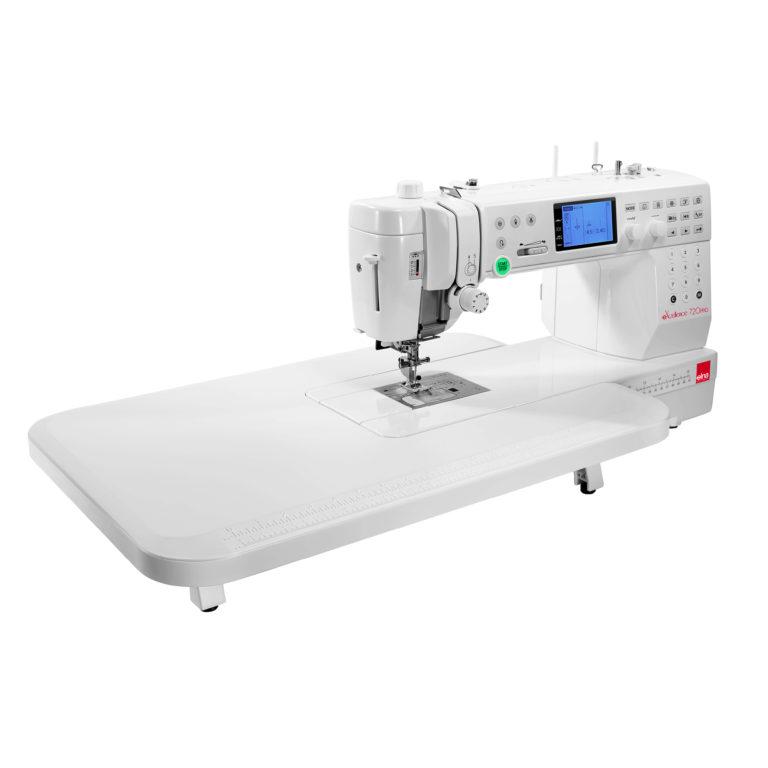

With its large sewing space and LED lighting, this computerized model offers exceptional comfort and will be your best ally when carrying out major projects. The adjustable stitch width up to 9mm will give you endless possibilities.
- 170 stitches
- 10 buttonholes
- Maximum sewing speed up to 1’000 spm
- Long arm and XXL sewing space
- 9 mm maximum sewing width
- Independent upper feed device
- Automatic and programmable thread cutter
- Easy and guided bobbin threader with built-in thread cutter
- elna-exclusive accessory storage
| ECHNICAL | |
| Machine size | 519 x 316 x 230 mm |
| Machine weight | 12.3 kg |
| Free arm | x |
| Sewing space | 280 x 120 mm |
| Screen type | LCD |
| Screen size | 51.5 x 155.5 mm |
| Rotary hook | Horizontal with clear bobbin cover |
| Bobbin winder | Auto declutch |
| Needle threader | Built-in |
| Feed dog | 7 pieces / Retractable |
| Thread tension control | Automatic |
| Dual Feed system | x |
| Bobbin threader | Easy and guided system with built-in thread cutter |
| Presser foot | Clip-on type |
| One-step needle plate conversion | x |
| Foot pressure adjustment | Manual |
| Extra-high presser foot lift | Two manual positions |
| Speed control slider | x |
| Adjustable knee lifter | x |
| Lighting | 5 LED lights |
| Accessory storage | Arm, top cover and exclusive the Elna side storage |
| Stitch reference chart | Top cover |
| Spool pin | Horizontal |
| FUNCTION BUTTONS | |
| Start / Stop | x |
| Reverse sewing | x |
| Automatic lock stitch | x |
| Up / Down needle position | x |
| Automatic thread cutter | x |
| Stitch selection | 4 designs |
| SEWING | |
| Number of stitches | 170 |
| Maximum stitch width | 9 mm |
| Maximum stitch length | 5 mm |
| Maximum sewing speed | 1000 spm |
| One-step buttonholes | 10 |
| Alphabets | 3 |
| Capital letters and numbers available in 9 mm high | x |
| Pattern combination | Up to 50 stitches |
| Memory | Temporary |
| Variable needle positions | 91 |
Standard accessories
- Standard foot A
- Rolled hem foot D
- Zipper foot E
- Satin stitch foot F
- Open-toe satin stitch foot F2
- Blind hem foot G
- Multi-cord foot H
- Overlock foot M
- ¼” seam foot O
- Darning foot PD-H
- Convertible free motion quilting foot QB-S
- Automatic buttonhole foot R with stabilizer plate
- Button sewing foot T
- Dual Feed foot holder (wide system)
- Dual Feed foot AD (wide)
- Circular pivot pin
- Quilting guide bar
- Straight stitch needle plate
- Bobbin x5
- Seam ripper
- Needle set
- Lint brush
- Tape measure
- Spool holder small x1
- Spool holder large x1
- Spool holder special x1
- Spool stand
- Additional spool pin
- Spool felt
- Screwdriver small
- Touch panel stylus
- Knee lifter
- Foot controller
- Semi-hard fabric cover
Optional accessories
We design accessories for all elna sewing machines to help you carry out with ease an array of sewing tasks and techniques.The accessories section includes all our accessories. We can help you find the suitable accessory for your model and specific use or purpose.
